Distillation Columns

We specialize in the design, fabrication, and supply of Distillation Columns for a wide range of Distillery, chemical, petrochemical, and refinery applications. Our columns are engineered to ensure optimum mass transfer efficiency, low pressure drop, and long-term mechanical reliability. We offer Packed, Tray, and Bubble Cap Type Columns, designed in accordance with international design codes and tailored to meet client process requirements.

Types of Distillation Columns

• Packed Column
• Used for continuous and batch distillation, absorption, or stripping services where low pressure drop and high efficiency are required.
• Suitable for vacuum and low-pressure operations
• Options for Random Packing (Raschig rings, Pall rings, Berl saddles) and Structured Packing (Mellapak, Flexipac, etc.)
• High mass transfer surface area and uniform liquid–vapor distribution
• Typically used in chemical, solvent recovery, and gas absorption applications

Tray Column

• Designed for moderate pressure and wide operating ranges.
• Available in Sieve, Valve, and Bubble Cap tray configurations
• Optimized liquid hold-up and vapor handling capacity
• Easy maintenance and tray replacement access
• Commonly used in refinery and petrochemical fractionation services

Bubble Cap Column

• Used where precise vapor–liquid contact and wide turndown ratio are required.
• Each tray consists of bubble caps that allow controlled vapor flow through liquid
• Ensures stable operation even at varying load conditions
• Ideal for fine separation processes and corrosive or fouling duties.

Design & Engineering

Process & hydraulic design based on Mc

Cabe–Thielemethods

• Tray efficiency evaluation (Murphree / Overall efficiency)
• Packing selection and HETP (Height Equivalent to Theoretical Plate) estimation
• Pressure drop, liquid distribution, and flooding analysis
• Thermal rating and optimization using software tools like Aspen Plus / ChemCAD
• Mechanical design as per ASME Section VIII Div.1, IS 2825, PD 5500, EN 13445

Carbon Steel

SA 516 Gr. 60/70

Stainless Steel

• SS304, SS316, SS316L, SS321
• Duplex & Super Duplex Stainless Steels

Nickel Alloys

• Inconel, Monel, Hastelloy
• Titanium & Copper Alloysfor special corrosion-resistant applications

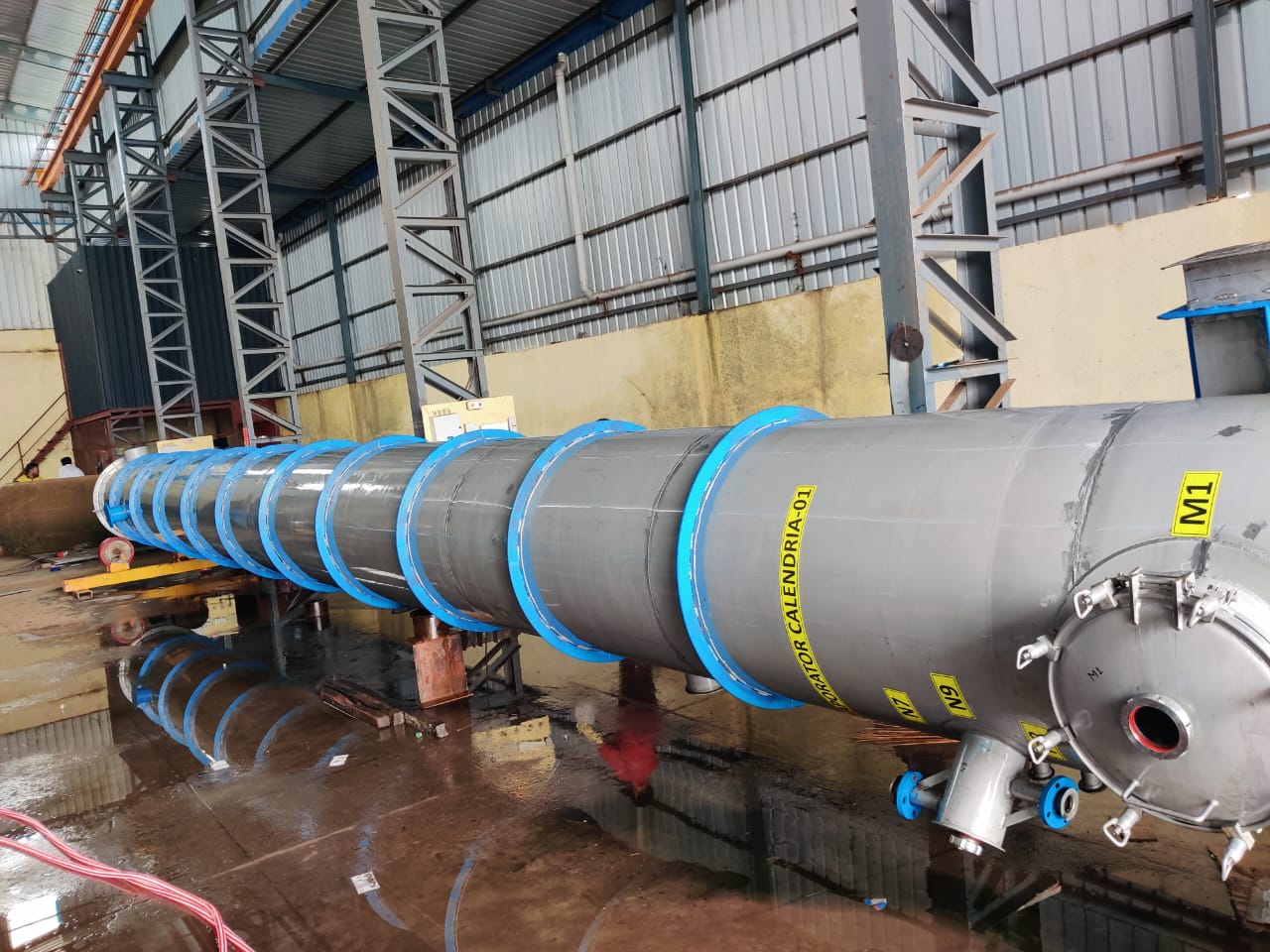

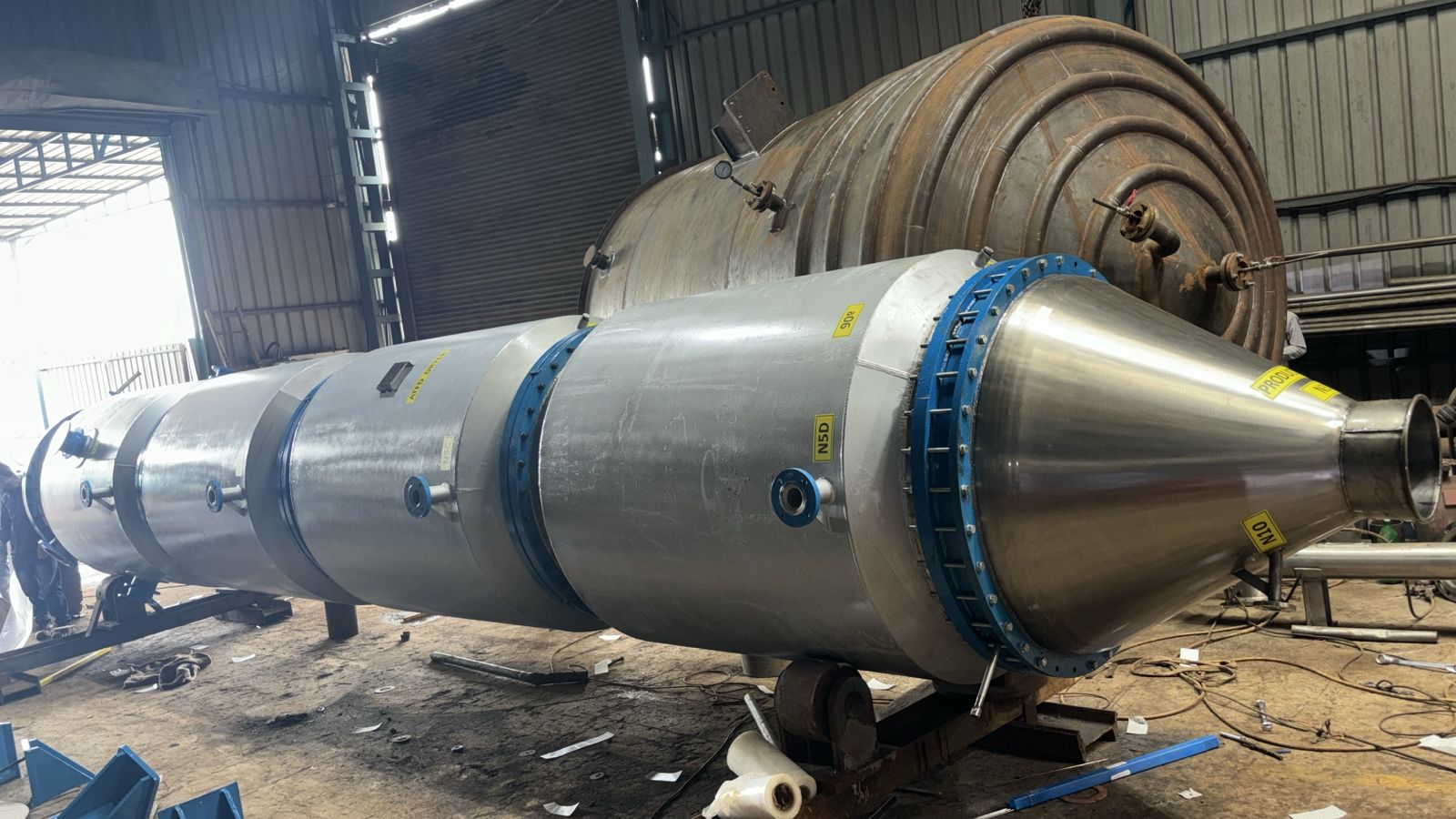

Fabrication & Testing

• Column diameter up to 0 metersand height up to 35 meters
• Welding & assembly with full radiography or 100% UT (as per spec)

Hydro, Pneumatic, and Helium Leak Tests

• NDT: RT, UT, PT, MT, PMI, and Hardness Tests
• Internal tray and packing installation with final alignment verification
• Third-Party Inspection (TPI) by Lloyd’s, BV, TUV, SGS, DNV.

Applications

• Analyser and Rectifier Column for Distillery Industries
• Fractionation and distillation in chemical and petrochemical industries
• Solvent recovery and dehydration units
• Gas absorption and stripping operations
• Crude distillation, vacuum distillation, and reactive distillation
• Alcohol distillation and pharmaceutical purification

Key Highlights

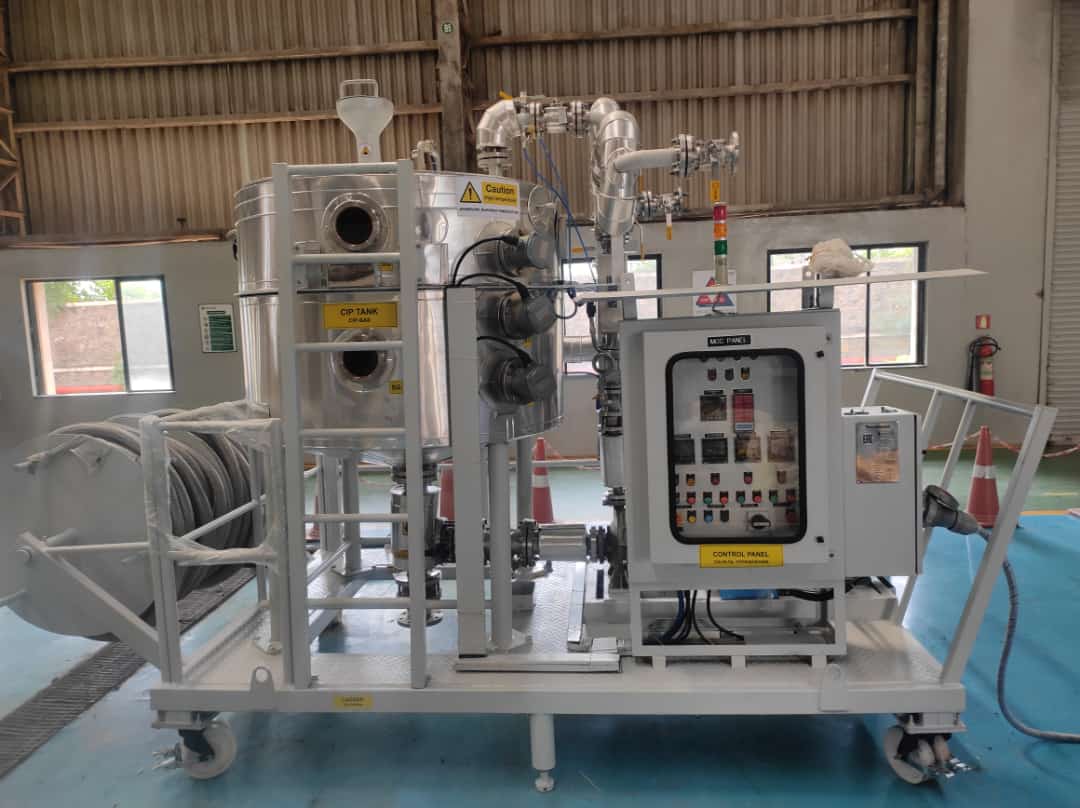

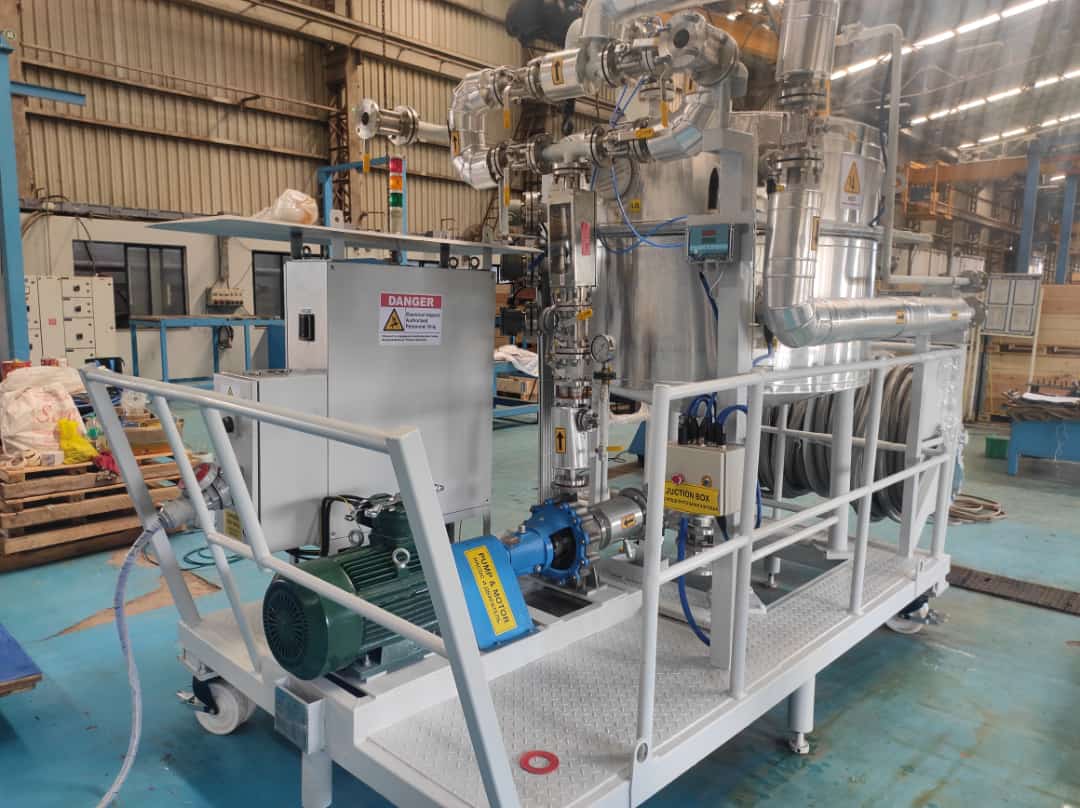

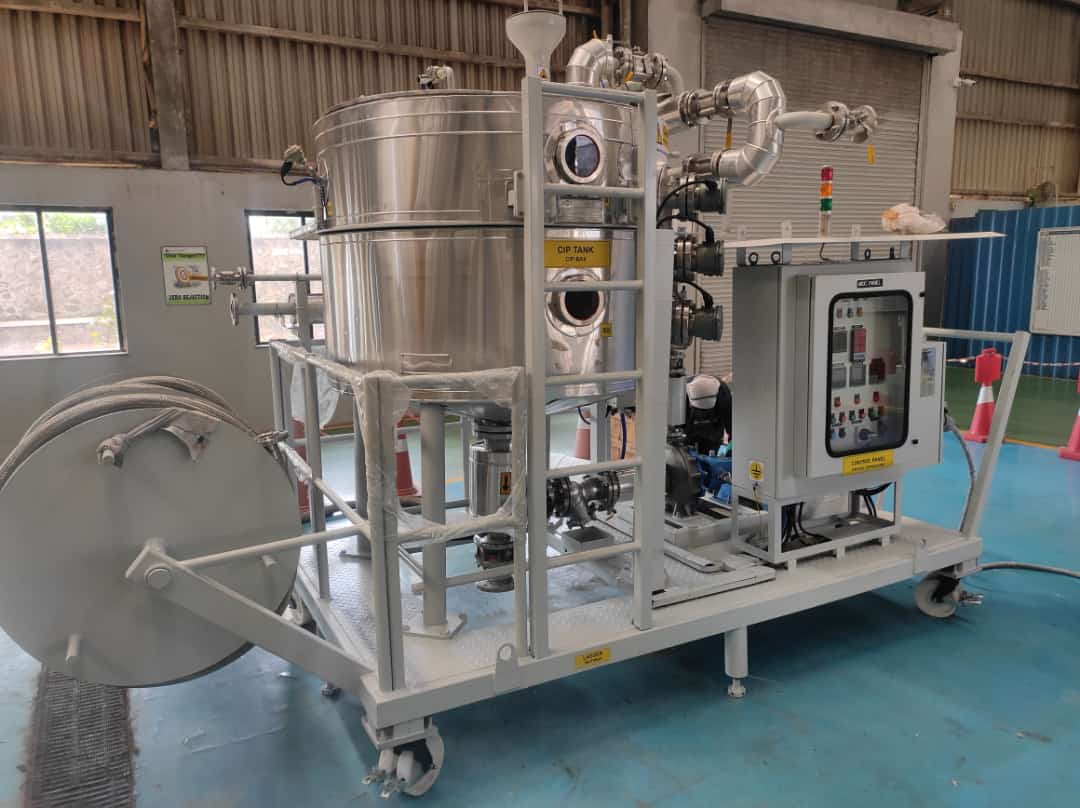

✅ In-house process, thermal, and mechanical design✅ Custom tray & packing configuration based on client data✅ Expertise in handling corrosive & high-vacuum applications✅ Skid-mounted column systems with piping & instrumentation integration✅ Proven performance in domestic and export projects
